Simple Tec Pty Ltd

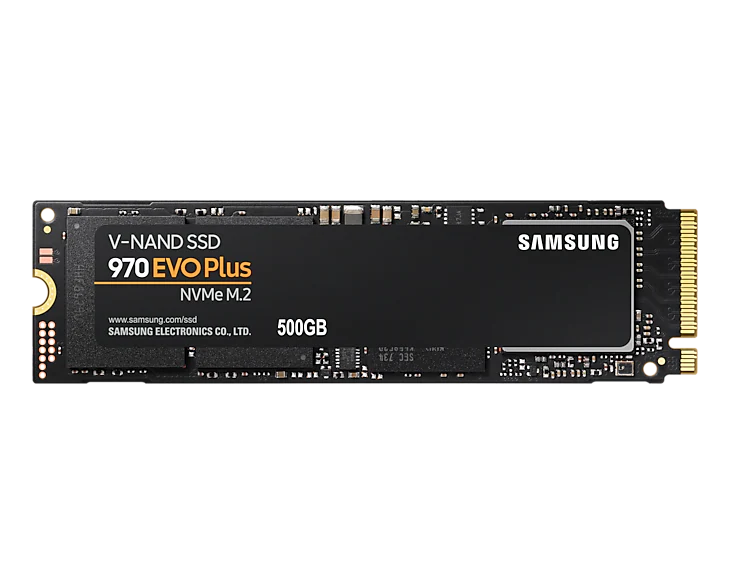

Samsung SSD 970 EVO Plus NVMe M.2 500 GB

Samsung SSD 970 EVO Plus NVMe M.2 500 GB

R 1,550.00
R 1,550.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Always Evolving SSD

The ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by the latest
V-NAND technology and firmware optimization. It maximizes the potential of NVMe bandwidth for unbeatable computing. In capacities up to 2 TB, with reliability of up to 1,200 TBW.

Always Evolving SSD

* 1 GB = 1,000,000,000 bytes by IDEMA. A certain portion of capacity may be used for system file and maintenance use, so the actual capacity may differ from what is indicated on the product label.

Level up Performance

The 970 EVO Plus reaches sequential read/write speeds up to 3,500/3,300 MB/s, up to 53% faster than the 970 EVO. The latest V-NAND - which brings greater NAND performance and higher power efficiency - along with optimized firmware, a proven Phoenix controller, and Intelligent TurboWrite boost.

Level up Performance

* Performances may vary depending on SSD’s firmware version and system hardware & configuration. Performance measurements based on IOmeter 1.1.0. The write performances were measured with Intelligent TurboWrite technology being activated. The sequential write performances after Intelligent TurboWrite region are: 400 MB/s (250 GB), 900 MB/s (500 GB), 1,700 MB/s (1 TB) and 1,750 MB/s (2 TB).
** Test system configuration: Intel Core i7-7700K CPU @4.2 GHz, DDR4 2400 MHz 32 GB, OS-Windows 10 Built 10240, Chipset–ASUS PRIME Z270-A.
***Up to 53 percent performance increase for sequential write speed for 250 GB version

Design Flexibility

The next advancement in NVMe SSD. The 970 EVO Plus fits up to 2 TB onto the compact M.2 (2280) form factor, greatly expanding storage capacity and saving space for other components. Samsung's innovative technology empowers you with the capacity to do more and accomplish more.

Design Flexibility

Exceptional Endurance

The new standard in sustainable performance. Get up to 1,200 TBW with a 5-year limited warranty for lasting performance. The 970 EVO Plus provides exceptional endurance powered by the latest V-NAND technology and Samsung’s quality.

* TBW: Terabytes Written
** Warrantied TBW for 970 EVO Plus: 150 TBW for 250 GB model, 300 TBW for 500 GB model, 600 TBW for 1 TB model, 1,200 TBW for 2 TB model.
*** 5-years or TBW, whichever comes first. For more information on the warranty, please find the enclosed warranty statement in the package.
Exceptional Endurance

Unparalleled Reliability

Achieve a new level of drive confidence. Samsung’s advanced nickel-coated controller and heat spreader on the 970 EVO Plus enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimize performance drops.

Unparalleled Reliability

Samsung Magician

Advanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health and speed, and even boost performance.

Samsung Magician

Specifications

    • ApplicationClient PCs

    • InterfacePCIe Gen 3.0 x 4, NVMe 1.3

  • Dimension (W x H x D)80.15 x 22.15 x 2.38 (mm)
    • WeightMax 8.0 g

    • Sequential ReadUp to 3,500 MB/s
      * Performance may vary based on system hardware & configuration

  • Sequential WriteUp to 3,300 MB/s
    * Performance may vary based on system hardware & configuration

General Feature

    • ApplicationClient PCs

    • Capacity500 GB (1 GB = 1 Billion byte by IDEMA)
      * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

    • Form FactorM.2 (2280)

    • InterfacePCIe Gen 3.0 x 4, NVMe 1.3

    • Dimension (W x H x D)80.15 x 22.15 x 2.38 (mm)

    • WeightMax 8.0 g

    • Storage MemorySamsung V-NAND 3-bit MLC

    • ControllerSamsung Phoenix Controller

  • Cache MemorySamsung 512 MB Low Power DDR4 SDRAM

Special Feature

    • TRIM SupportSupported

    • S.M.A.R.T SupportSupported

    • GC (Garbage Collection)Auto Garbage Collection Algorithm

    • Encryption SupportAES 256-bit Encryption (Class 0) TCG/Opal IEEE1667 (Encrypted drive)

    • WWN SupportNot supported

  • Device Sleep Mode SupportYes

Performance

    • Sequential ReadUp to 3,500 MB/s
      * Performance may vary based on system hardware & configuration

    • Sequential WriteUp to 3,300 MB/s
      * Performance may vary based on system hardware & configuration

    • Random Read (4 KB, QD32)Up to 480,000 IOPS
      * Performance may vary based on system hardware & configuration

    • Random Write (4 KB, QD32)Up to 550,000 IOPS
      * Performance may vary based on system hardware & configuration

    • Random Read (4 KB, QD1)Up to 19,000 IOPS
      * Performance may vary based on system hardware & configuration

  • Random Write (4 KB, QD1)Up to 60,000 IOPS
    * Performance may vary based on system hardware & configuration

Environment

    • Average Power Consumption (System Level)* Average: 6 W
      ** Maximum: 9 W (Burst mode)
      *** Actual power consumption may vary depending on system hardware & configuration

    • Power consumption (Idle)Max. 30 mW
      * Actual power consumption may vary depending on system hardware & configuration

    • Allowable Voltage3.3 V ± 5 % Allowable voltage

    • Reliability (MTBF)1.5 Million Hours Reliability (MTBF)

    • Operating Temperature0 - 70 ℃ Operating Temperature

  • Shock1,500 G & 0.5 ms (Half sine)

Software

  • Management SWMagician Software for SSD management
View full details
