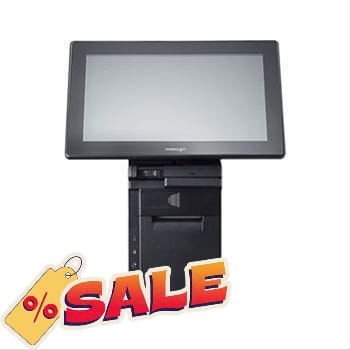

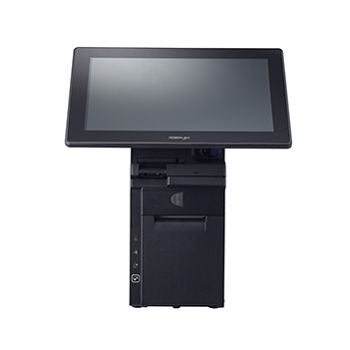

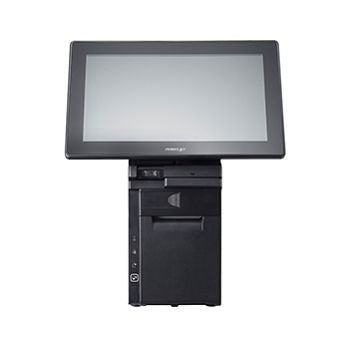

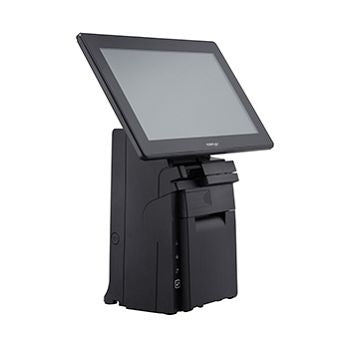

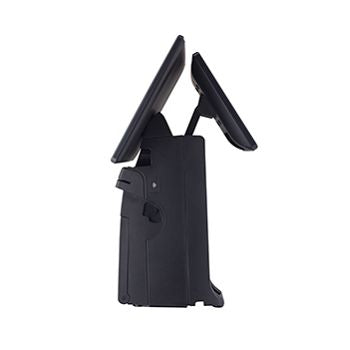

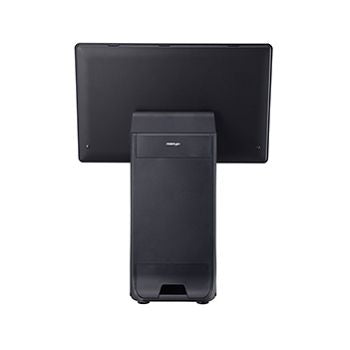

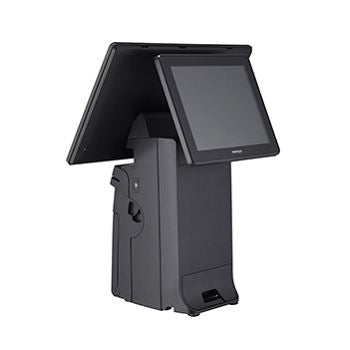

Posiflex All In One Touch POS - HS-3514W-SSD

Posiflex All In One Touch POS - HS-3514W-SSD

R 10,799.00
R 10,799.00
Sale Sold out
Tax included. Shipping calculated at checkout.

The HS-3514W is a whole new generation of high-end all-in-one POS terminal, packing innovativeness and functionalities in compact design with stylish look. It is the perfect fit for retail businesses where space is at premium.

Innovative All-in-one Solution

  • The HS-3514W integrates the most widely used peripherals options in daily POS operation including MSR, fingerprint sensor, RFID reader, barcode scanner and thermal printer.

  • Small Form Factor

    • Its compact footprint takes space saving to extremes and creates a clean, cable-free environment.
  • Modular Design
  • Detachable modularized printer design allows quick access to the components, enabling convenient, efficient serviceability.
System Configuration
Processor Intel Bay Trail J1900 Quad Core, up to 2.42 GHz, 2M Cache
System Memory DDR3L SO-DIMM x 1, max. 8GB
Storage Device SATA x 2 (one for HDD/SSD; the other for 1” SSD only)
Power Supply 24V/60W
Built-in Printer 3” detachable printer w/auto cutter, 250 mm/sec (max.)
Built-in WiFi N/A
OS support Windows 7/POSReady 7/Windows Embedded 8.1 Industry/Windows 10 IoT/Linux per request
Display & Touch
LCD 14" TFT LCD
Resolution 1366 x 768
Touch True-flat PCAP touch with multi-touch support (IP65 on front panel)
I/O Expansion
Serial Port 3, DB9 x 2 + RJ50 x 1, 5V/12V support on all COM ports
Parallel Port Yes
Standard USB Port 4, USB 3.0 x 1+ USB 2.0 x 3
OTG USB N/A
LAN Port 10/100/1000 Mb x 1
Display Port VGA x 1, 12V support for Posiflex monitors
CR Port 1, control 2 CR via optional Y-cable (printer driven), supporting 24V cash drawer
PS/2 Port Yes
Audio Line-out x 1
Expansion Slot Mini-PCIe slot x 1
Physical Dimension
Dimension (W x D x H in mm) 371.5 x 198 x 473
Weight (N. W. in kg) 5.8
Environmental
Operating Condition 0°C - 40°C, 20%RH - 90%RH
Storage Condition -20°C - 70°C, 10%RH - 90%RH
Built-in Options
WiFi Mini-PCIe WiFi/BT module
MSR 3 tracks ISO or JISII (HID/VCOM selection)
Fingerprint Sensor Optical type
RFID Reader Support MIFARE Ultralight and Classic 1K card (HID/VCOM Selectable)
Scanner 2D barcode scanner
iButton Yes (cannot coexist with Fingerprint Sensor)
4G / LTE Communication Single SIM slot, selected band support
Attachment Options
POS Monitor Non-touch TFT LCD: 7"/9.7"/12.1";
PCAP touch TFT LCD: 9.7"
Line Display 2 x 20 rear-mount VFD customer line display;
2 x 20 rear-mount LCD customer line display;
7" color LCD graphical line display
* The product information and specifications are subject to change without prior notice.
