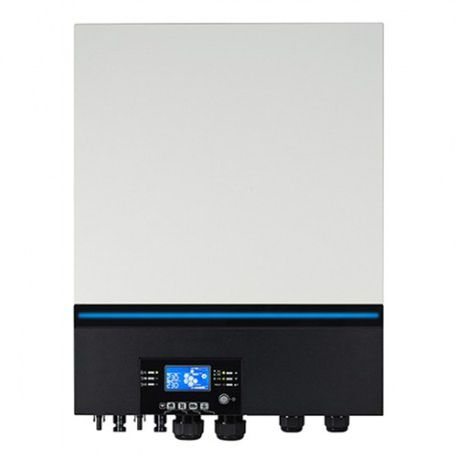

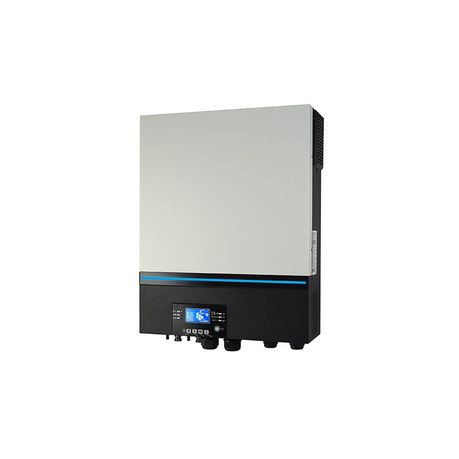

Mecer Off Grid 8Kw 48V Inverter

This inverter boasts dual 4kW MPPT's which adds flexibility to your design.

The Max can parallel up to 6 units in a single or 3-phase configuration.. The Max has a RGB light that changes colors depending on the inverter's current working mode

Features
Customizable status LED bar with RGB breathing lights.
Built-in Wi-Fi for mobile monitoring (Android/iOS App is available).
Supports USB On-the-Go function.
Reserved communication port for BMS (RS485, CAN-BUS or RS232).
Replaceable fan design for ease of maintenance.
Battery independent function.
Enhanced AC/Solar charger to 120A.
Built-in anti-dust kit.
Parallel operation up to 6 units.

Specifications
Rated Power: 8000VA/8000W.
Parallel Capability: Yes, 6 units.

Input
Voltage: 230 VAC.
Voltage Range: 170-280 VAC (For Computers), 90-280 VAC (For Home Appliances).
Frequency Range: 50 Hz/60 Hz (Auto sensing).

Output
AC Voltage Regulation (Batt. Mode): 230VAC ± 5%.
Efficiency (Peak): 90% ~ 93%.
Transfer Time: 15 ms (For Personal Computers), 20 ms (For Home Appliances).
Waveform: Pure sine wave.
No Load Power Consumption:

Efficiency
Battery Voltage: 48 VDC.
Floating Charge Voltage: 54 VDC.
Overcharge Protection: 66 VDC.
Solar Charger & AC Charger
Solar Charger Type: MPPT.
Maximum PV Array Power: 8000W (4000W x 2).
MPP Range @ Operating Voltage: 90 ~ 450 VDC.
Maximum PV Array Open Circuit Voltage: 500 VDC.
Number of MPP Trackers: 2.
Maximum Solar Charge Current: 120 A.
Maximum AC Charge Current: 120 A.
Maximum Charge Current: 120 A.

What's in the box
1 x Mecer Off Grid 8Kw 48V Inverter
