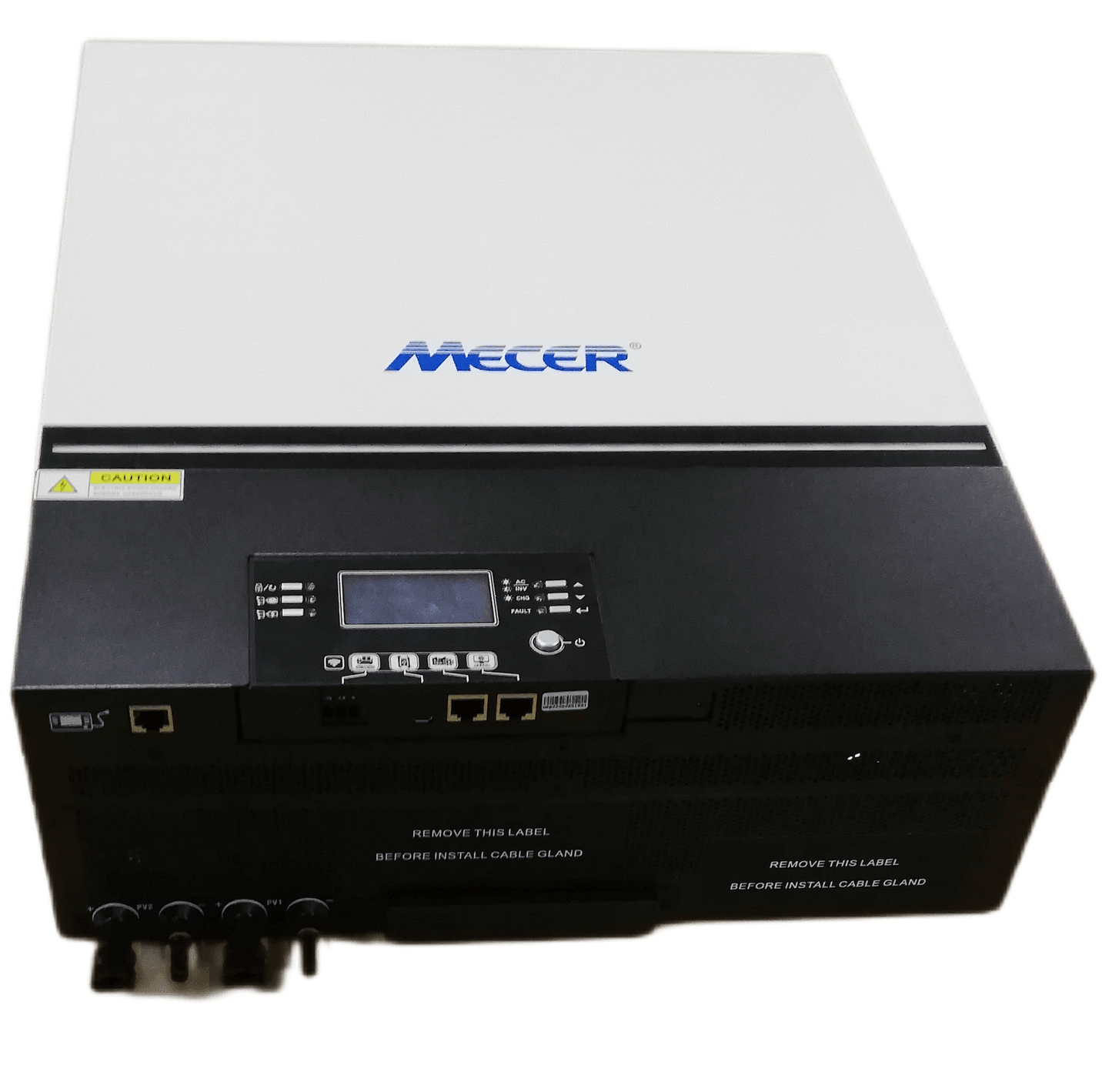

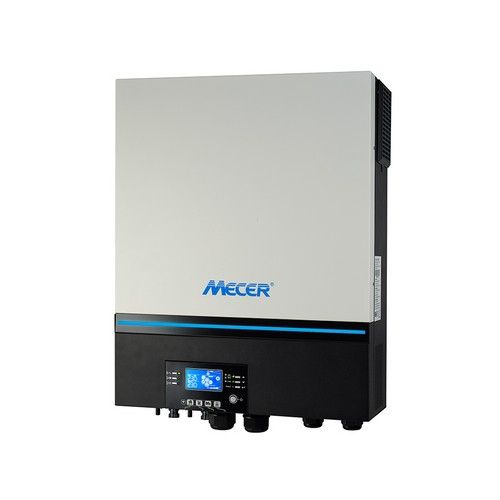

Mecer Axpert 11kVA 11kW MPPT 230Vac 48VDC Off Grid Inverter SOL-I-AX-11M

Mecer Axpert 11kVA 11kW MPPT 230Vac 48VDC Off Grid Inverter

Features:
- Colour black and white
- Name: SOL-I-AX-11M
- Operating Temperature Range: -10-50deg C
- Pure sine wave inverter
- Output power factor 1
- Built-in high voltage range MPPT solar charge controller
- Selectable input voltage range for home appliances and personal computers
- Selectable charging current based on application
- Configurable AC/Solar input priority via LCD setting
- Compatible with mains voltage or generator power
- Auto restart while AC is recovering
- Overload and short circuit protection
- Battery equalization for optimized battery performance and lifecycle
- Cold start function
- Built-in parallel kit enabling parallel operation with up to 9 units

Specifications:
Inverter Mode:
- Rated Power: 11000VA/11000W
- DC Input: 48VDC, 228A
- AC Output: 230VAC, 50/60Hz, 47.8A, 1Ohm

AC Charger Mode:
- AC Input: 230VAC,50/60Hz,60A, 1Ohm
- DC Output: 54VDC
- Max. 150A, Default 30A
- AC Output: 230VAC, 50/60Hz, 47.8A, 1Ohm

Solar Charger Mode:
- Rated Power: 5500W x2
- Nominal Operating Voltage: 340VDC
- Max Solar Voltage(VOC): 500VDC
- MPPT Voltage Range: 90-450VCD
- Enclosure: IP21
- Protective Class I

What's in the box
1 x Inverter
1 x Cables
1 x DVD
1 x User Manual
