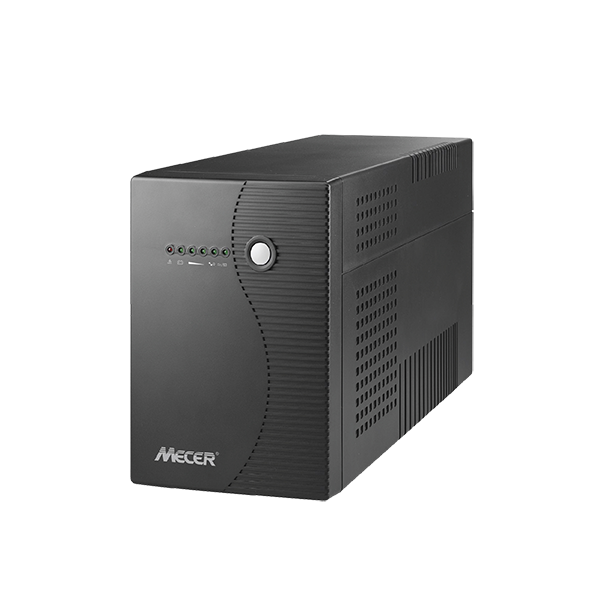

Mecer 650VA (600VA/360W) Line Interactive/Off-Line UPS (Includes Dedicated Power Cord - Kettle Plug to RED 3 pin)

Specifications
- Microprocessor control guarantees high reliability
- Boost and buck AVR for voltage stabilization
- Auto restart while AC is recovering
- Simulated sine wave
- Off-mode charging
- Cold start function
- USB communication port and RJ-11/RJ-45 protection
- Overload, discharge, and overcharge protection
- Supports Windows 2000/2003/XP/Vista/2008, Windows 7, Linux, Unix, and MAC

Estimated UPS Backup Timetable

Back Time (Minutes)
25% Load 90W: 19 minutes
50% Load 180W: 6 minutes
75% Load 270W: 30 seconds
100% Load 360W: 5 seconds

Note:
Data given are the average values, not the minimum values.
A UPS is not designed to provide continuous power, merely a window period that allows a computer or other user to finalise the work at hand and shut down. It's ability to do this is dependent on the number of devices connected to the UPS.
To establish what you can and cannot connect, calculate the total wattage you need to supply and ensure that the UPS you purchase meets that requirement.

Technical Specifications

Input
Capacity: 650VA/360W
Voltage: 220/230/240 VAC
Voltage Range: 162-290 VAC

Output
AC Voltage Regulation (Batt. Mode): +/- 10%
Frequency Range (Batt. Mode): 50Hz or 60Hz +/- 1 Hz
Transfer Time: Typical 2-6 ms
Waveform (Batt. Mode): Simulated Sine Wave

Battery
Battery Type & Number: 12 V/7 Ah x 1
Typical Recharge Time: 4-6hours recover to 90% capacity

Alarm
Battery Mode: Sounding every 10 seconds
Low Battery: Sounding every second
Overload: Sounding every 0.5 second
Fault: Continuously sounding

Physical
Dimension D x W x H (mm): 279 x 101 x 142
Net Weight (kgs): 4.2

Environment
Humidity: 0-90 % RH @ 0-40 C (non-condensing)
Noise Level: Less thank 40dB

Interface
USB Port: Windows 2000/2003/XP/Vista/2008/7/8/10, Linux, Unix and MAC

What's in the box
1 x UPS Unit
2 x Male to Female Extension Power Cord IEC C13-C14 Serial (From UPS to PC)
1 x USB cable (From UPS to PC)

Includes Dedicated Power Cord - Kettle Plug to RED 3 pin
