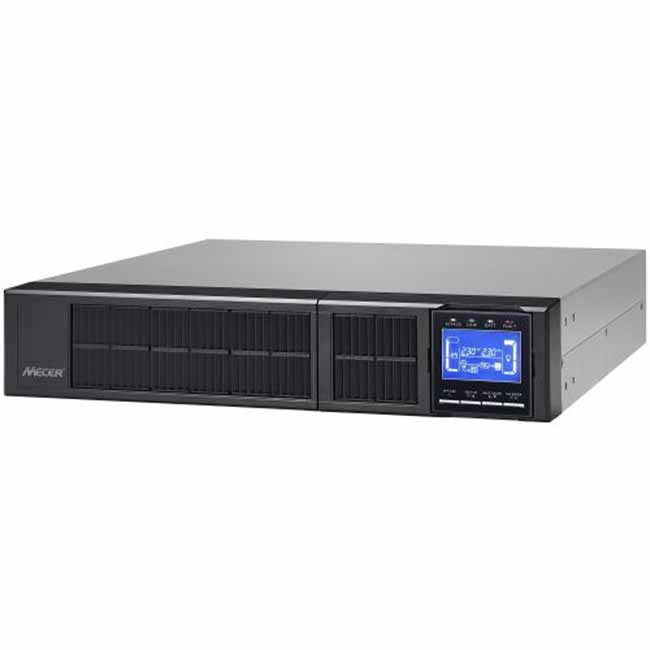

Mecer 6000VA / 4800W ON-LINE UPS Rack Mount - ME-6000-WPRV/U

Mecer - Mecer 6000VA / 4800W 6U ON-LINE SINE WAVE Rackmountable UPS (with Monitoring Software) - Black. 12 V / 9 Ah batteries x16. Voltronic Power Winner Pro online pure sine wave UPS.

Specifications and features
Product Code ME-6000-WPRU
CAPACITY 6000 VA / 4800 W
PHASE Single phase with ground
INPUT
Input Voltage Range 110-300 VAC (Based on load at 50%); 176-300 VAC (Based on load at 100%)
Nominal Voltage 208/220/230/240 VAC
Frequency Range 46~54 Hz or 56~64 Hz
Power Factor >= 0.99 @ Nominal Voltage (100% load)
OUTPUT
Voltage Regulation ± 1%
Output Voltage 208/220/230/240 VAC
Frequency Range (Batt. Mode) 50 Hz or 60 Hz ± 0.1 Hz
Transfer Time : AC Mode to Battery Mode Zero
Transfer Time : Inverter to Bypass Zero
Transfer Time : Waveform (Batt. Mode) Pure Sine Wave
Current Crest Ratio 3::1
Harmonic Distortion -- 3% THD (Linear Load); -- 5% THD (Non-linear Load)
Frequency Range (Synchronized Range) 46~54 Hz or 56~64 Hz
EFFICIENCY
Battery Mode 0.9
AC Mode 0.92
BATTERY
Long-run Model : Battery Type Depending on the capacity of external batteries
Long-run Model : Charging Current (max.) 1A/2A/4A/6A (Adjustable, 6A is only available for 16pcs batteries)
Long-run Model : Charging Voltage 273 VDC ± 1% (Based on 20pcs bateries)
Long-run Model : Numbers 16~20 (Adjustable)
Standard Model : Battery Type 12 V / 9 Ah
Standard Model : Charging Current (max.) 1A/2A
Standard Model : Charging Voltage 218.4 VDC ± 1%, 273 VDC ± 1%
Standard Model : Numbers 16, 20
Standard Model : Typical Recharge Time 9 hours recover to 90% capacity
INDICATORS
LCD Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators
ALARM
Battery Mode Sounding every 4 seconds
Low Battery Sounding every second
Overload Sounding twice every second
Fault Continuously sounding
ENVIRONMENT
Operating Humidity 0~95% RH @ 0- 50°C (non-condensing)
Noise Level Less than 55dB @ 1 Meter
PHYSICAL
Standard Model : Dimension, D x W x H (mm) 530 x 438 x 88 [2U]
Standard Model : Net Weight (kgs) 15
Long-run Model : Dimension, D x W x H (mm) 530 x 438 x 88 [2U]
Long-run Model : Net Weight (kgs) 15
MANAGEMENT
Optional SNMP Power management from SNMP manager and web browser
Smart RS-232/USB Supports Windows 2000/2003/XP/Vista/2008, Windows 7/8/10, Linux, and MAC

What's in the box
1 X Mecer 6000VA / 4800W ON-LINE UPS Rack Mount- ME-6000-WPRV/U
