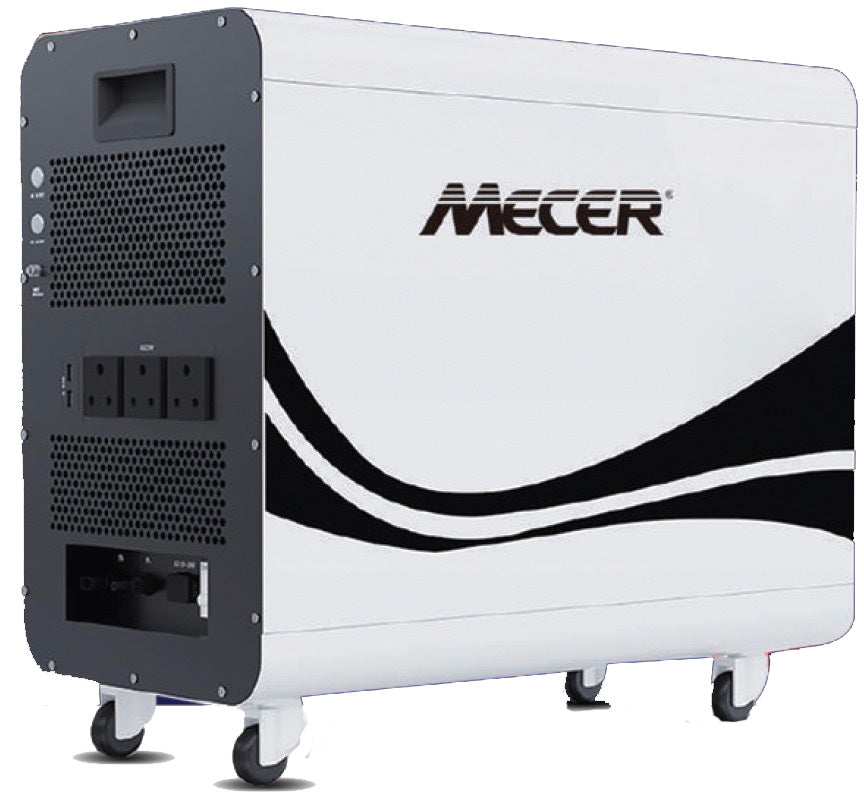

Mecer 3kW 48V 100Ah Lithium Battery

Inverter Parameter

• Inverter Power: 3000W
• AC Output Voltage: 220/230Vac 50Hz ± 0.3Hz / 60Hz ± 0.3Hz
• AC Input: 220/230Vac 50Hz ± 0.3Hz / 60Hz ± 0.3Hz ; Charge Current: 8A
• Output Wave Form: Pure Sine Wave
• Transfer Time (UPS): 10ms (Typical Value
• Efficiency: >92%
• PV Charge: 120-500Vdc
• Max. PV Power: 4000W (Maximum PV Input Current:80A)

Battery Parameter

• Battery type: Lithium LiFePO4 Battery
• Nominal Voltage: 5.2
• Nominal Capacity:105Ah
• Nominal Energy: 5.4kWh
• Voltage Working Range: 40-58.4V
• Max. Continuous Discharge: 100A
• Cycle Life*: ≥6000 cycles (*Test Condition: 80% DOD, 0.2C current @25℃)
• BMS Protection: Overcharge, Overdischarge, Overcurrent, Shortcircuit,Over temperature protections
• Operating Temperature: Charge: 0℃~45℃; Discharge: -10℃~55℃; Storage: -10℃~45℃

Product Design

• AC Output Port: 3*AC Output ( South Africa socket)
• AC Input Port: 1*AC Input Port
• DC Input: MC4 Connector
• DC Output: 5V 2A USB Port*2
• LCD Screen: Working mode setting, checking system info, etc
• Install Method: Mobile type with wheels
• Warranty: 2 Years Warranty
• Enclosure Protection: IP20
• Humidity: ≤95%
• Certificates:
  • Battery Cell: UL1973/IEC62619/CE/UN38.3/UN38.3;
  • Inverter: CE/UL/IEC/FCC/ROHS/SAA
  • MECER SOL-I-BB-M3: CE(EMC+LVD)/IEC62368

Technical Parameter

• Dimension & Weight 710*581*339mm(With wheels) 66KG
