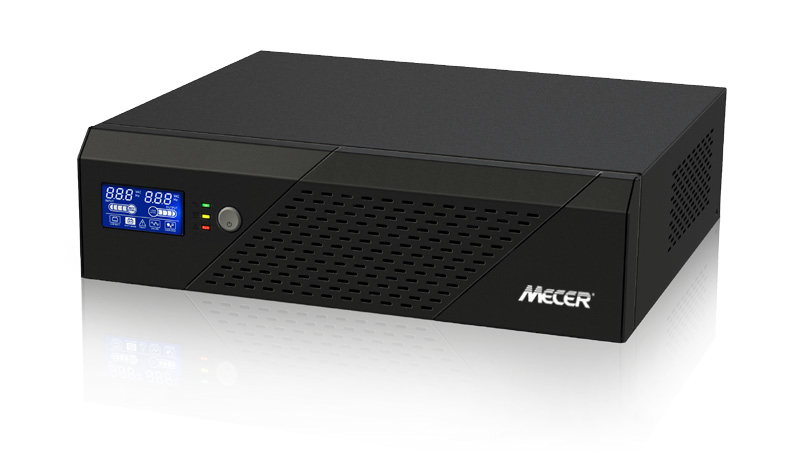

Mecer 2400VA, 1440W, 24V DC-AC Inverter with LCD Display - 1 Year Warranty (Not compatible with Lithium Batteries)

PLEASE NOTE: Requires 2 x 12V deep cycle batteries. Batteries not included.

Mecer has been one of South Africa's top-selling PCs over the past two decades. Mustek's ongoing interaction within the international IT industry has ensured that Mecer has remained a techno-leader at the forefront of technology.

Features:

- Simulated sine wave inverter

- Built-in AVR for voltage regulation

- Wide input voltage range: 90-280 VAC

- 24VDC

- Overload and short circuit protection

- LCD display for comprehensive information

Specifications:

- MODEL: Mecer IVR-1200LBK

- CAPACITY: 2400 VA / 1440 W

- POWER FACTOR: 0.6

- Input Voltage range 90-280VAC

Line Mode:

- Output Voltage

- Bypass mode: 0utput voltage same as input voltage

- AVR mode: Output voltage = Input voltage 1.2 at Input voltage - Output Frequency Same as input

Battery Mode:

- Output Voltage 230Vac +/-10%

- Transfer Time 20ms typical

- Waveform Modified Sine-wave

Overload Capability:

- Bypass Mode (in VA and Watts) Load >110%+/-15% , alarm 5 mins then fault

- Load >130% +/-15%, fault immediately.

- AVR Mode (in VA and Watts)at Input voltage > 170VAC Load >100%+/-15%, go to bypass mode

- AVR Mode (in VA and Watts)at Input voltage < 170VAC Load >60%+/-15%, go to bypass mode

- Battery Mode (in W) Load>110% +/-15%, overload alarm for 15s, and then will switch to fault mode for 10s. Then unit will re-start for 5 times Load>120% +/-15% , fault & cut off O/P immediately.

Short Circuit Protection:

- Line Mode Breaker

- Battery Mode Current limit +Firmware Protection

Battery:

- Battery Voltage 24 VDC

- Acceptable Battery Type Rechargeable lead-acid battery, Deep discharge battery

- Polarity Reserve Protection Yes

- Charger available I/P range 90~280V

- BATTERY’S NOT INCLUDED

Charger:

- Constant Current Charger Voltage 28.6VDC +/-2%

- Floating Charge Voltage 27.4VDC +/-2%

- Maximum Charge Current 10A or 20A

- DC Start Voltage >22VDC

Physical:

- Dimension, D X W X H (mm) 350 x 90 x 300

- Net Weight (kgs) 5.5

Environment:

- Operating Humidity 0 to 90% Relative Humidity(Non-condensing)

- Operating Temperature 0 degrees C to 40 degrees C

- Storage Temperature -15 degrees C to 50 degrees C
