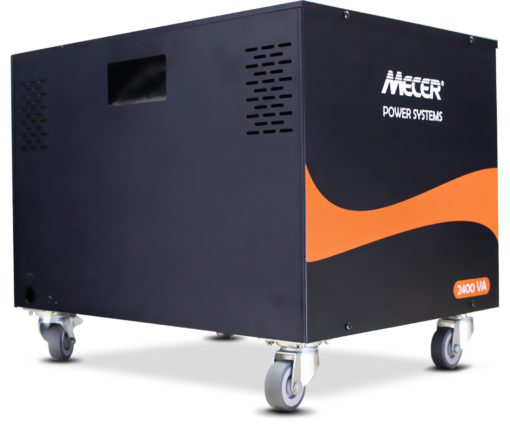

Mecer 2.4KVA/1440W Inverter with housing and wheels with 2 x 100Ah batteries - BBONE-024S+
Mecer 2.4KVA/1440W Inverter with housing and wheels with 2 x 100Ah batteries - BBONE-024S+
Inverter housed in a portable metal casing with space to fit 2x 100AH Deep Cycle AGM Batteries
Features:
- Simulated Sine Wave Inverter
- Wide Input Voltage Range
- 2.4kVA 1440W DC-AC Inverter
- LCD Display For Comprehensive Information
- Overload, Short Circuit, And Reverse Polarity Protection
Specifications:
- Capacity - 2400va/ 1440w
Input:
- Voltage - 230 Vac
- Acceptable Voltage Range - 90-280 Vac
- Frequency - 50 Hz/60 Hz (Auto Sensing)
Output:
- Ac Voltage Regulation (Batt. Mode) - ± 10%
Efficiency: (Peak) - 82%
- Transfer Time - 20 Ms Typical
- Waveform (Batt. Mode) - Simulated Sine Wave
Battery:
- Battery Type And Numbers - 2x 12V 100ah
Protection:
- Full Protection - Overload, Short Circuit, And Polarity Reserve Protection
Physical:
- Dimension - 420mm(H) X 440mm (W) X 450mm (L)
- Operating Environment:
- Humidity - 0 To 90% Relative Humidity(Non-Condensing)
- Operating Temperature - 0 Cto 40c
- Storage Temperature - 15c To 50c
